Wire-guide screens, shade without the full track.
Exterior screens held steady by tensioned stainless steel cables on each side. A cost-effective way to cut sun and glare on patios, pergolas, balconies and windows where full wind protection is not needed.
Simple, steady sun control.
Cut sun & glare
Stops harsh sun before it heats the patio and furniture.
Learn more02Keep your view
Screen fabric lets you see out while it blocks the sun.
Learn more03Cost-effective
A lighter system than zip-track for spaces that do not need full wind protection.
Learn more04Wind sensor option
A solar sensor raises the screens when gusts get strong.
Learn more05Motorized
Every screen comes with a remote; add a smart hub for app and voice.
Learn more06Up to 23 ft wide
Built to the inch for your opening in Carrollton.
Learn moreChoose your view and your shade.
Exterior screen fabric is woven so air moves through while the sun stays out, and you still see the yard from inside. Fabrics block 85%, 90%, 94%, 95% or 99% of the sun.
- Higher sun blocking: more privacy and glare control, with a softer view
- Lower sun blocking: a clearer view with lighter shade
- Fabric color: darker colors usually give a clearer view out; lighter colors reflect more heat
- Try it first: preview fabrics on a photo of your own patio in our Visualizer
Built for your opening, to the inch.
Steel cables
Tensioned stainless steel cables guide the fabric on each side.
Headbox sizes
Three cassette sizes, matched to the width and drop of the screen.
Fabrics
Exterior screen fabrics blocking 85% to 99% of the sun.
Controls
Remote included; add a smart hub, schedules and a solar wind sensor.
36 colors, from Ice White to Black.
A few popular exterior screen colors. Each percentage shows how much sun the fabric blocks: higher blocks more heat and glare, lower keeps more of your view.
Wire-guide screens, by the numbers.
- Guide system
- Tensioned stainless steel side cables

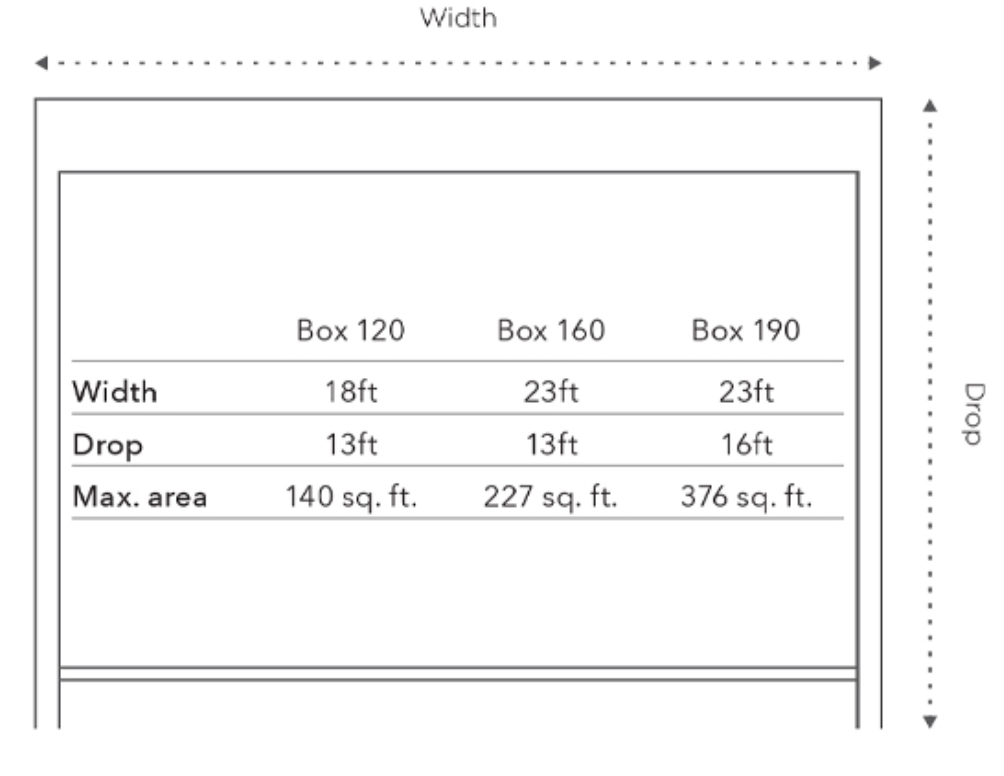

- Max size
- Up to 23 ft wide or 16 ft tall, up to 376 sq ft per screen

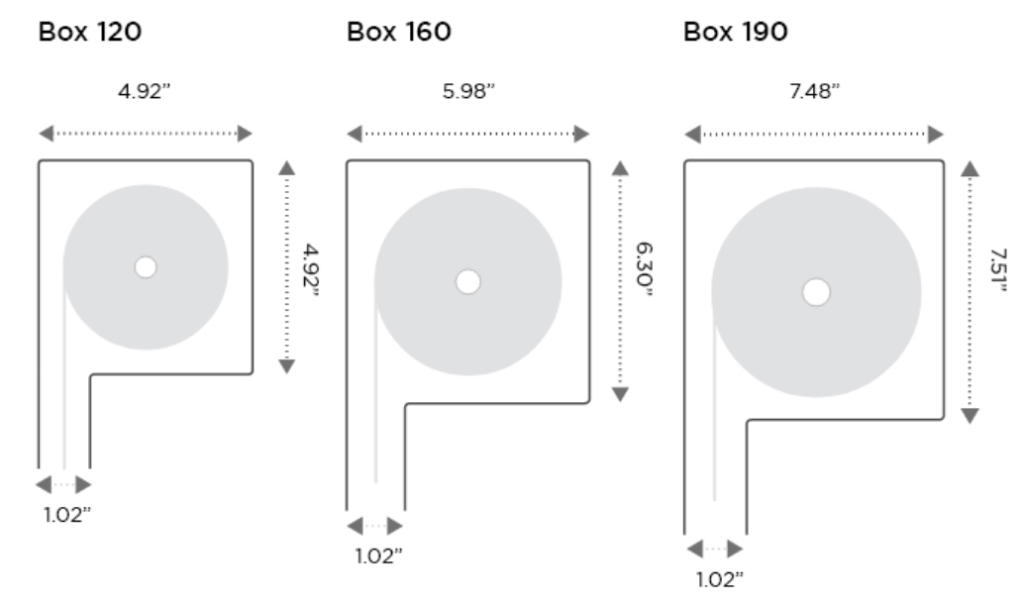

- Headbox
- 3 sizes: 4.92", 5.98" or 7.48" deep, matched to screen size
- Fabrics
- Block 85%, 90%, 94%, 95% or 99% of the sun
- Operation
- Motorized, with remote
- Smart home
- Alexa, Google Home, Apple HomeKit with smart hub
- Wind protection
- Optional solar-powered wind sensor
- Made in
- Carrollton, Texas, USA
- Lead time
- About 2–4 weeks
- Measuring
- Our in-house design consultants
- Installation
- Our in-house technicians
- Warranty
- 5 yrs motors & controls, 5–10 yrs fabrics
Remote included, smart home optional.
- Remote: every screen is motorized and comes with a remote
- Smart hub: phone, tablet and schedules, even when you are away
- Voice: Alexa, Google Home and Apple HomeKit

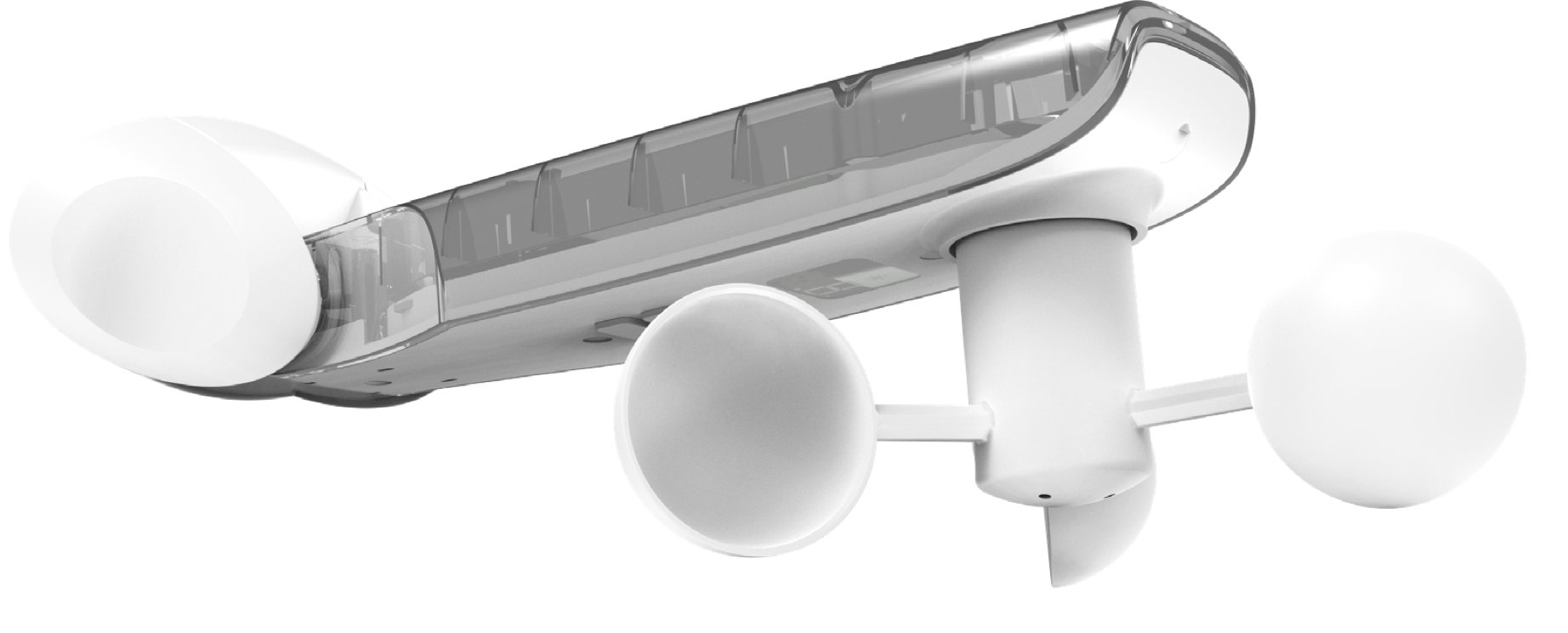

- Solar wind sensor: raises the screens automatically in strong wind; mounts on a roof, wall, eave or fascia
Why buy from the factory?
| Shadeotech | Typical dealer | |
|---|---|---|
| Where it is made | Our own factory in Carrollton, Texas | Often shipped in from an out-of-state plant |
| Lead time | About 2–4 weeks | Varies with the supplier |
| Installation | Our own in-house team | Often subcontracted |
| Order updates | Live dashboard for every production step | Usually by phone or email |
| Warranty contact | One company, from measurement to service | Dealer and manufacturer |
Watch your screens being made.
Every Shadeotech customer gets a personal dashboard that shows each production step, from order to installation day, so you never have to call and ask where your order is.
- Live updates: see each step as it happens in our factory
- Install scheduling: know your installation date as soon as it is set
- One place: your order details and contact in one login
- Order confirmed
- Fabric cut
- Assembled
- 7-step quality check
- Ready for installation
- Installed
From first visit to final fitting.
Book a visit
Choose an in-home, video or showroom consultation.
Measure & samples
We measure every window and bring real fabrics to see in your own light.
Built in Carrollton
Your shades are made to size in our own factory.
Installed by our team
We fit, program and test everything before we leave.
Wire-guide screens, explained.
What is a wire-guide screen?
An exterior roller screen that runs between tensioned stainless steel cables on each side. The cables keep the fabric stable and in line as it raises and lowers.
Wire guide or zip-track: which do I need?
Zip-track screens lock the fabric edges into side channels, so they stand up better to wind and seal out insects. Wire-guide screens leave the edges free, which makes them a cost-effective choice where you mainly want sun and glare control. <a href="/exterior-zip-track-screens/">Compare zip-track screens</a>.
Do wire-guide screens keep bugs out?
Not completely. The fabric edges are not sealed in a channel. If insects are the main concern, choose zip-track screens.
How big can a wire-guide screen be?
Up to 23 ft wide or 16 ft tall, with a maximum of 376 sq ft per screen in the largest headbox.
What happens when it gets windy?
Add a solar-powered wind sensor. It measures wind speed and raises the screens automatically when gusts pass a set level.
Can I control the screens from my phone?
Yes. Every screen comes with a remote, and a smart hub adds app control, schedules and voice control with Alexa, Google Home or Apple HomeKit.
How long does it take to get exterior screens?
Exterior screens are made in our Carrollton factory in about 2–4 weeks. Our technicians then install them, usually in one visit.
What does the warranty cover?
Our written limited warranty covers defects in materials and workmanship: motors and controls for 5 years, and fabrics for 5 to 10 years depending on the fabric. Register within 30 days of installation to be covered.
Let us see it in your own light.
We bring the fabrics to you, measure every opening, and quote it there and then.
